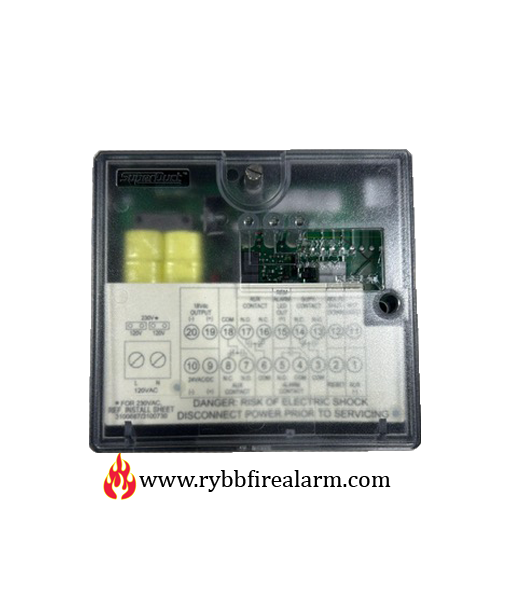

Edwards ESD-CJ Duct Smoke Detector Controller (RJ45)

The Edwards ESD-CJ Duct Smoke Detector Controller is an intelligent controller designed for use with Edwards SuperDuct RJ45 smoke sensors in commercial HVAC smoke detection systems. The Edwards ESD-CJ serves as the primary control interface between the remote duct smoke sensor and the fire alarm system, providing alarm processing, relay outputs, status indication, and HVAC shutdown functions. Therefore, it delivers dependable smoke detection control while helping prevent the circulation of smoke throughout a building’s ventilation system. Edwards ESD-CJ Function The Edwards ESD-CJ monitors a compatible RJ45-connected smoke sensor installed within the HVAC duct system. As a result, when smoke is detected, the controller activates its onboard alarm relays to initiate fire alarm notification, HVAC shutdown, smoke control functions, or building automation responses. In addition, the controller supervises the connected sensor and provides clear status indication for alarm and trouble conditions. RJ45 Remote Sensor Interface The ESD-CJ is designed specifically for use with Edwards ESD-SJ, TSD-SJ, and SD-SJ RJ45 photoelectric duct smoke sensors. Consequently, installers can mount the smoke sensor directly on the duct while locating the controller for convenient wiring and maintenance. Moreover, the modular RJ45 connection simplifies installation and detector replacement. HVAC Smoke Control The Edwards ESD-CJ is engineered to help prevent smoke migration through HVAC systems by initiating fan shutdown or other smoke control sequences when an alarm condition occurs. Therefore, it supports life safety objectives by limiting smoke distribution throughout the protected building. Furthermore, the controller integrates easily with fire alarm control panels and building automation systems. LED Status Indicators The controller incorporates highly visible LED indicators that display normal operation, alarm, and trouble conditions. As a result, maintenance personnel can quickly determine detector status during inspections or troubleshooting. Additionally, the clear cover allows visual inspection without opening the enclosure, reducing maintenance time. Easy Installation and Service The SuperDuct controller features a low-profile housing with a large wiring compartment, plug-in RJ45 sensor connection, and convenient access to field wiring. Consequently, installation is simplified while reducing service time during maintenance and detector replacement. The modular design also supports flexible installation in both new construction and retrofit HVAC applications. Technical Specifications Model: ESD-CJ Type: Duct Smoke Detector Controller Manufacturer: Edwards Product Series: SuperDuct Compatible Sensors: ESD-SJ TSD-SJ SD-SJ Sensor Connection: RJ45 Modular Connector Detection Method: Remote Photoelectric Sensor Alarm Outputs: Form C Relay Contacts LED Indicators: Power, Alarm, Trouble Housing: Low-Profile Polycarbonate Enclosure with Clear Cover Installation: HVAC Supply and Return Air Duct Systems Application: HVAC Smoke Detection and Fan Shutdown Compatible Accessories: Sampling Tubes, Remote Test Stations, Remote Indicators Listings: UL Listed, FM Approved (System Dependent) Applications The Edwards ESD-CJ Duct Smoke Detector Controller is ideal for: Commercial HVAC systems Fire alarm systems Smoke control systems Office buildings Healthcare facilities Educational institutions Hotels and hospitality properties Warehouses Manufacturing facilities Building automation systems Reliable HVAC Smoke Detection Control Solution The Edwards ESD-CJ Duct Smoke Detector Controller combines intelligent smoke detection control, modular RJ45 sensor connectivity, relay outputs, and installer-friendly design in a dependable HVAC monitoring solution. Overall, it enhances life safety by providing reliable smoke detection, HVAC shutdown capability, and seamless integration with commercial fire alarm and smoke control systems. ESD-CJ Datasheet
